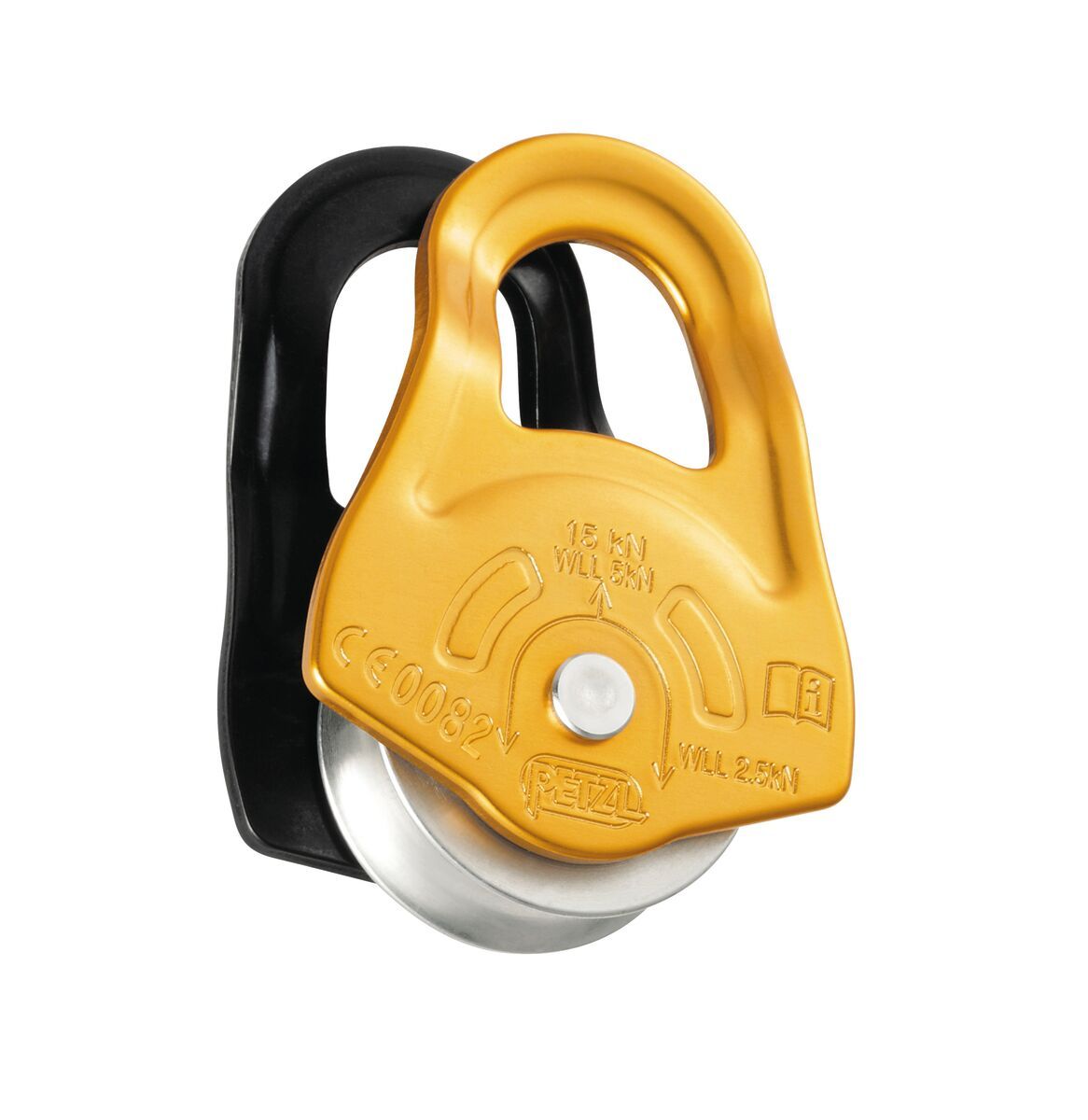

Compact pulley with swinging side plates
The PARTNER pulley is compact and light, yet ensures excellent efficiency thanks to its aluminum sheave mounted on sealed ball bearings.
Description
- Extremely lightweight and ultra-compact pulley
- Quick and easy installation due to the swinging side plates
- Sheave mounted on sealed ball bearings for excellent efficiency
Specifications
- Material(s): aluminum side plates, aluminum sheave
- Certification(s): CE EN 12278, UIAA, UKCA
References P52A
- Weight 56 g
- Min. rope diameter 7 mm
- Max. rope diameter 11 mm
- Sheave diameter 25 mm
- Efficiency 91 %
- Working load 5 kN
- Working load on one rope strand: 2.5 kN
- Breaking strength 15 kN
- Guarantee 3 years
- Inner Pack Count 1
